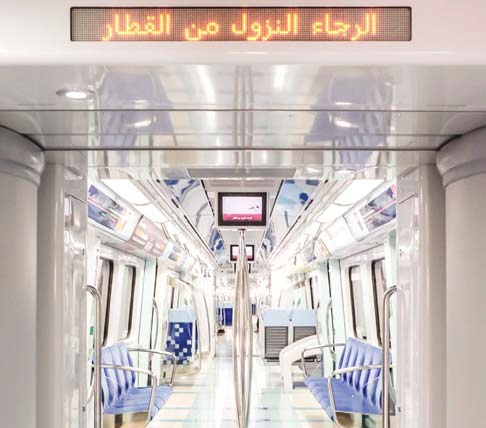

The standard AMT5-PID is a 16 x 160 LED high brightness display with a wide viewing angle.
The PID shares the AMT-5 CAN network with other CAN-based AMT-5 devices, reducing the required amount of cabling on each train. Redundant network connections are supported to improve reliablility and provide fault resilience.
The PID supports multiple controllers with priority locking and arbitration to ensure that the most important message is displayed.
Customised Display Requirements
The AMT-5 PID can be customised to meet specific requirements.
The display size configuration can be varied to meet specific display requirements.
The enclosure can be customised to suit specific mounting requirements.
The controller can be integrated with large displays to allow, for example, roadside variable message signs to be integrated into an AMT-5 system.
Please contact us for details and to discuss customisation.
| Typical Specifications | |
|---|---|
| Physical1 | |
| Dimensions (without mounting brackets) | 731.5mm long x 81.1mm high x 77mm deep |
| Dimensions (viewable area) | 720mm long x 70.3mm high |
| Dimension (with mounting brackets) | 801.5mm long x 81.1mm high x 77mm deep |
| IP rating | IP54 |
Power |
|
| LED Supply Voltage | Standard 70V - 110 V DC or customer defined |
| LED Supply Consumption | 20W |
| Internal current at 5V DC | 3.7 A |
| Control Voltage | 12V ‐ 24V DC |
Network |
|
| Communications | Dual CAN 2.0B |
Display2 |
|
| Display Area | 16 x 160 pixel |
| LED colour | Amber |
| LED pitch | 4.5mm |
| Built-in Character sets | Unicode Latin Unicode Arabic Other character sets can be loaded as required Left-to-right and right-to-left text supported |
| Viewing Angle | 120° for 86.4% of display 90° for display edges |
| Display Brightness (max) | 1109 cd/m2 |
| Certification | EN50155 |
